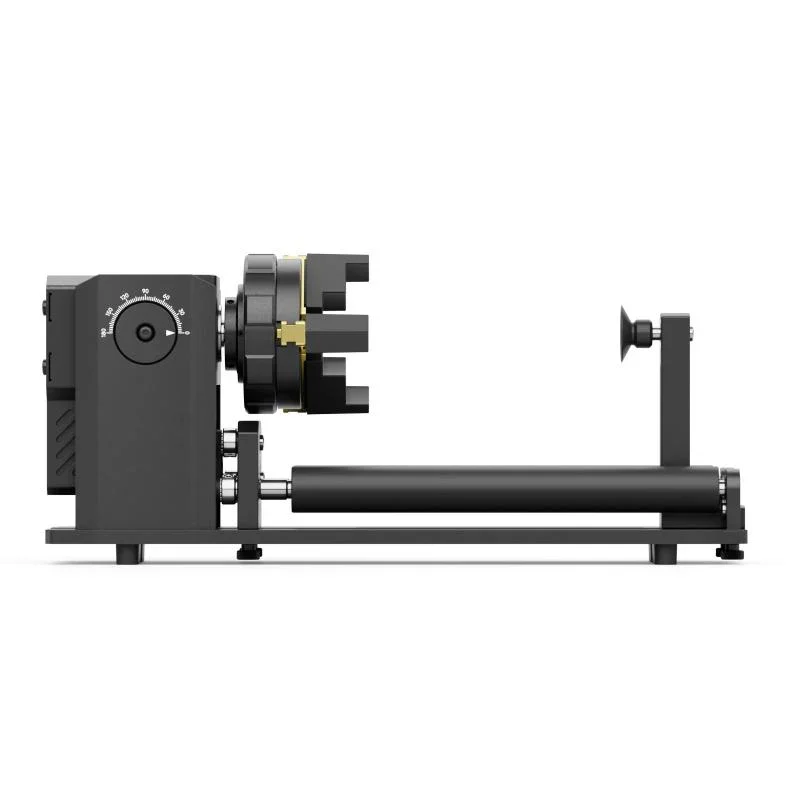

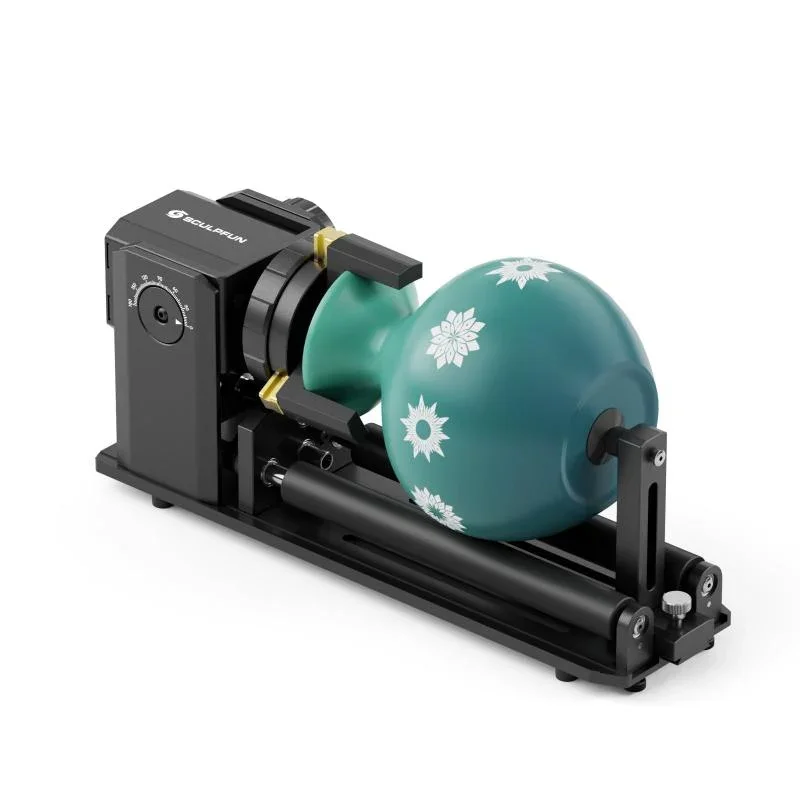

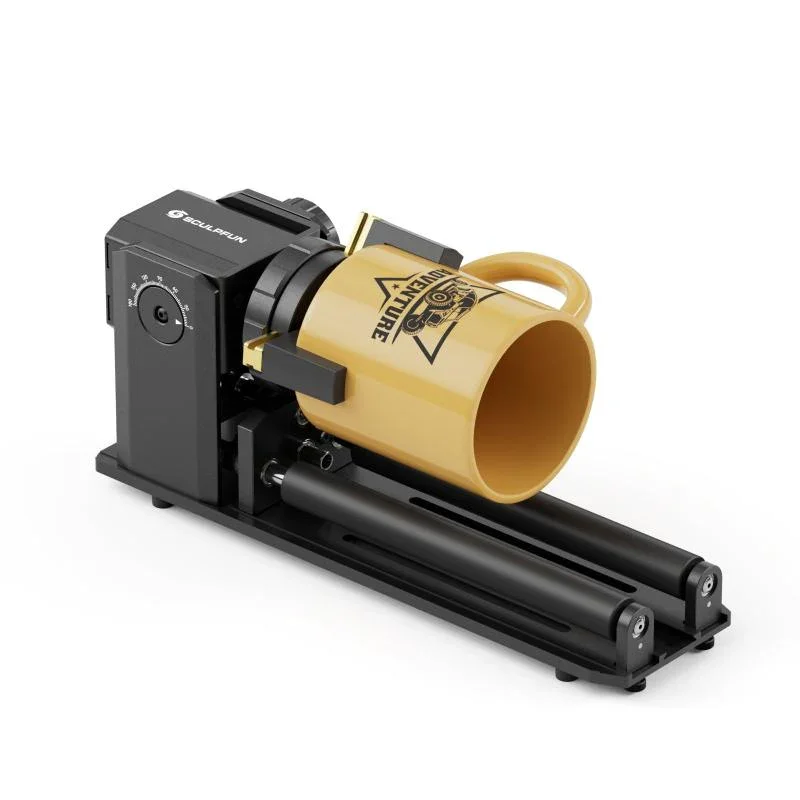

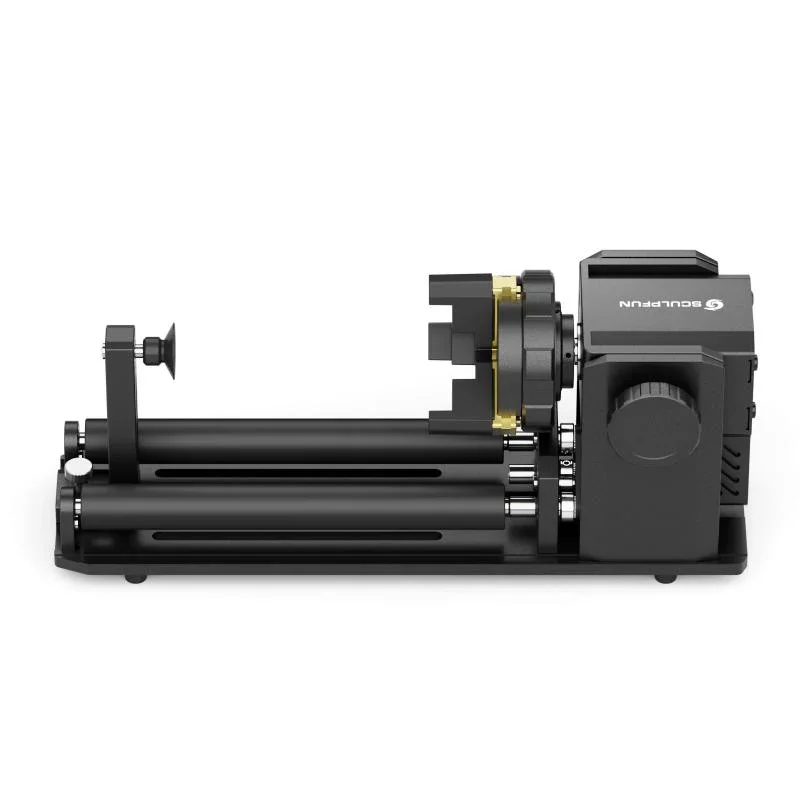

SCULPFUN RA Pro Max 4 in 1 Rotary Chuck for Laser Engraver
Main Features :
1. All-in-one Framework Structure: The roller and the chuck share a motor, which makes the overall size more compact. Also, this roller is designed with a quick disassembly feature that allows for quick removal through the screw under the bottom plate. Its compact size makes it easy to store and organize when not in use.
2. 180° Adjustable Angle: This rotary roller has an adjustable angle of 180 degrees, within which it can be freely adjusted for more space to process large objects.
3. Easy and Convenient: Comes with adapter cables, simply connect it to the Y-axis stepper motor interface of the laser engravers to use, plug and play.
4. Durable Metal Structure: The chuck is composed of anodized aluminum alloy materials as a whole, providing excellent corrosion resistance. The claw part is made of high-strength brass to ensure firmness and reliability, and is not easy to slide for a long time use. This robust metal construction offers stability and durability.
5. Multifunctional Support Bracket: SCULPFUN RA Pro Max rotary chuck is equipped with a multi-functional support bracket system.The tailstock utilizes a hand screw to tightly fix the spherical objects. The dual wheel extension bracket features with the function of adjustable height and three width options for easy processing of extra-long cylindrical objects. This design simplifies support and adjustments, allowing more machining options.
Notice:
Please remove the roller before adjusting the chuck angle
Compatible Machines: S6/S6 Pro/S9/S10/S30 Series/S30 Ultra Series/SF-A9/S40 Max/S70 Max/G9/V5
Note: For other models, please check with us
Software: LightBurn/LaserGRBL (LightBurn is recommended)
Maximum Engraving Speed: 6000mm/min
Engraving Precision: 0.1mm
Rotation Angle: 0-180°
